D-NMC1R

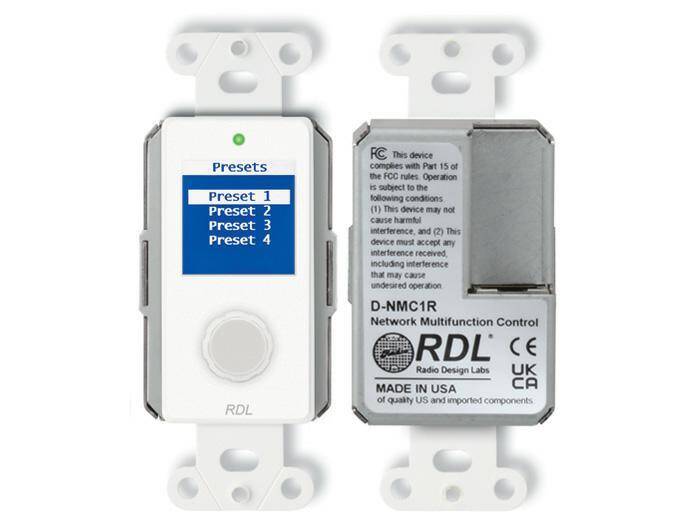

RDL D-NMC1R - Network Remote Control with LCD Screen

The RDL D-NMC1R is a network rotary remote control with a full-color LCD display, designed for precise audio level control and system management in AV installations. It allows volume adjustment in 1 dB steps from 0 to 64 dB, with mute/unmute functionality via the knob’s push button. The knob features acceleration for fast response to sudden level changes.

A long press opens the menu, giving access to Bluetooth playback control, volume settings, and user-defined presets. Presets can include complex command sets such as audio level adjustments, source mixing, Dante routing, Bluetooth pairing, phantom power control, and output level switching (Mic/Line). Each preset can control one or multiple Dante-enabled devices and is configured using RDL CONSOLE software.

The D-NMC1R can operate independently or in sync with other units, maintaining consistent volume and mute states. It is PoE powered and compatible with RDL D-RN, DD-RN, and other RDL modules. The display supports selectable color themes and dims after 30 seconds of inactivity. Menu functions can be password-protected.

Functionality

• Remote control of audio levels and AV system functions
• Preset execution with RDL CONSOLE commands
• Bluetooth playback control (pause/resume, track selection)
• Synchronization of multiple controllers in one zone
• Control of multiple Dante devices
• Configurable security and screen dimming

Features

• Rotary encoder with mechanical detents and push button
• Volume adjustment in 1 dB steps (0–64 dB)
• Acceleration for fast knob rotation
• Mute/unmute with visual feedback
• Full-color LCD with selectable themes
• Menu access to presets, Bluetooth, and volume
• Supports up to 8 presets and 8 networked devices
• Compatible with RDL and Dante products
• PoE powered

The RDL D-NMC1R is a powerful yet intuitive network controller, ideal for professional AV environments requiring flexible and reliable remote control.
