500791-NDI

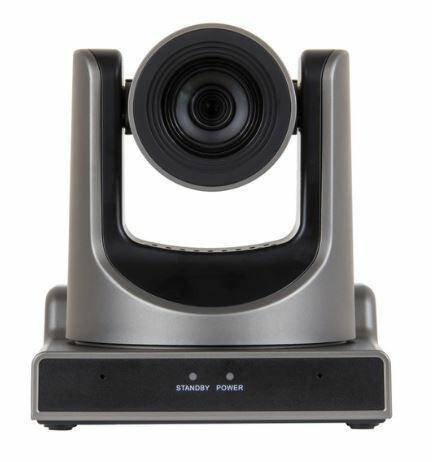

MuxLab 500791-NDI USB/NDI/IP PTZ Camera with 12x Optical Zoom and PoE

The MuxLab 500791-NDI is a professional PTZ camera designed for AV applications, offering Full HD 1080p video streaming at 60Hz. It supports HDMI, USB 3.0, SDI, and IP outputs, providing flexibility for integration with various AV systems. With full NDI protocol support, the camera enables high-quality network-based streaming without the need for additional hardware.

An advanced AI algorithm enables precise body tracking, enhancing performance in dynamic environments. The camera features a 1/2.8” CMOS sensor with 2.07 million effective pixels, delivering detailed images even in low-light conditions (minimum illumination: 0.05 Lux). Power over Ethernet (PoE) simplifies installation by removing the need for separate power sources.

Remote control via IP and RS232 allows seamless integration with automation and AV management systems.

Functionality

• Real-time AV capture and monitoring
• Live streaming to platforms like YouTube, Facebook, Wowza
• Integration with OBS and Wirecast production tools
• Full NDI protocol support
• Ideal for education, houses of worship, fitness and cooking studios

Features

• Maximum resolution: 1920 x 1080 (Full HD) at 60Hz

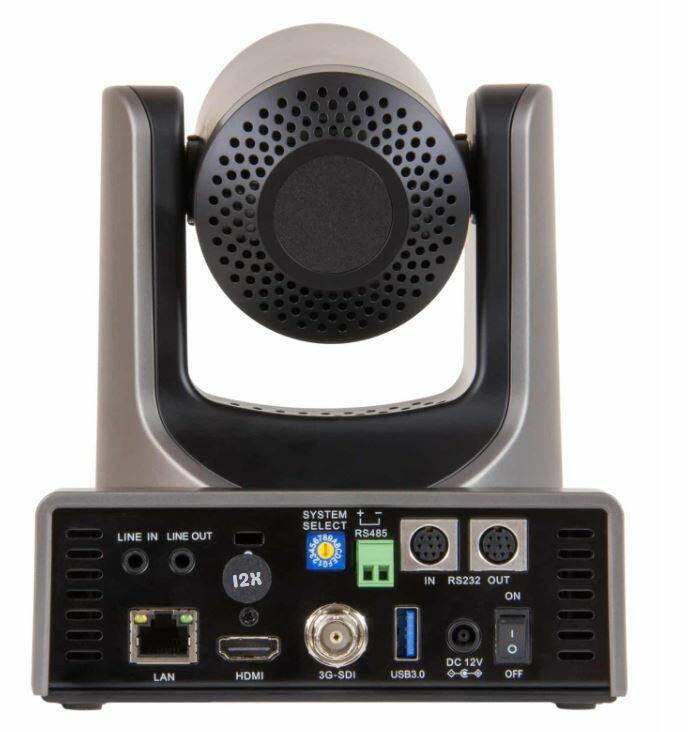

• Outputs: HDMI, USB 3.0, SDI, IP
• Full NDI protocol support
• 12x optical zoom
• 72.5° horizontal field of view
• Advanced auto-focusing technology
• Built-in dual microphone
• PoE (Power over Ethernet) support
• AI-based body tracking algorithm
• 1/2.8” CMOS sensor with 2.07 million effective pixels
• Aperture: F1.8 – F2.8
• Focal length: f3.5mm – 42.3mm
• Shutter speed: 1/30s – 1/10000s
• Minimum illumination: 0.05 Lux
• Remote control via IP and RS232

The MuxLab 500791-NDI is a compact and efficient solution for AV professionals who need a reliable PTZ camera with NDI support, high image quality, and seamless integration with modern streaming systems.
