RF-TXRM-865
Radio Frequency Stationary Transmitter 865MHz
Catalogue index: Contacta000289
- Delivery time: 14 days
- Delivery: from PLN0.00 (InPost)
Description
Contacta RF-TXRM-865 - rack-mounted RF transmitter, 865 MHz
The Contacta RF-TXRM-865 is a professional radio frequency transmitter designed for 19” rack installation. It provides wireless audio transmission in large venues, supporting multiple RF-RX1-865 portable receivers. With digital transmission technology and a wide frequency response, it delivers excellent sound quality for both speech and music.
Ideal for lecture halls, auditoriums, places of worship, and conference rooms, the RF-TXRM-865 offers up to 42 selectable channels, inbound Bluetooth™ streaming, and an intuitive OLED display for easy configuration.
Functionality
- Wireless audio transmission for large venues
- Supports multiple RF-RX1-865 receivers
- Bluetooth™ audio streaming
- Rack-mountable 19” design
- Perfect for conferences, education, and public events
Features
- Carrier frequency: 865 MHz (UK/EU)
- RF output power: Hi - 18 dBm, Mid - 13 dBm, Lo - 10 dBm
- Coverage: approx. 100 m (line of sight, Hi power)
- Frequency response: 70 Hz - 12 kHz
- Channels: up to 42

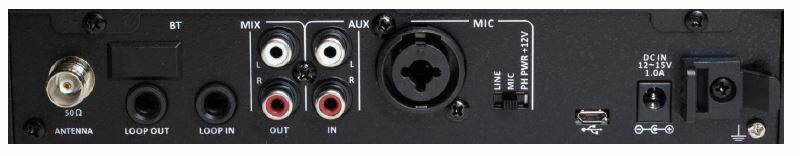

- Inputs:
- Mic in: 3.5 mm & 6.3 mm
- Aux in: RCA
- Loop in: 6.3 mm
- Bluetooth™ streaming
- Outputs:
- Earmic out: 3.5 mm stereo
- Aux out: RCA
- Loop out: 6.3 mm
- Supports dynamic and electret mics (phantom power)
- Balanced and unbalanced connections (XLR)
- OLED display with settings menu
- Power: 100-240 V AC / 12 V DC, 1 A
- Included: TNC antenna, rack bracket, power supply, fixing screws
The RF-TXRM-865 is a reliable solution for professional AV installations, ensuring stable transmission and superior audio quality.
