SM-300

Cardioid Dynamic Microphone (SM-300)

SM-300 Wired Mobile Musical Wind Product Description: High-speed designed heart-shaped directional mobile sound head structure for matched human voice; Multi-scene.

Functional Features

• High Rxport Design – High-output design for vocals that cut through the mix.
• Natural Voice – Tailored for smooth, nature vocal reproduction.
• Magnetic Opening – Silent on-off operation thanks to vacuum magnetic switch.

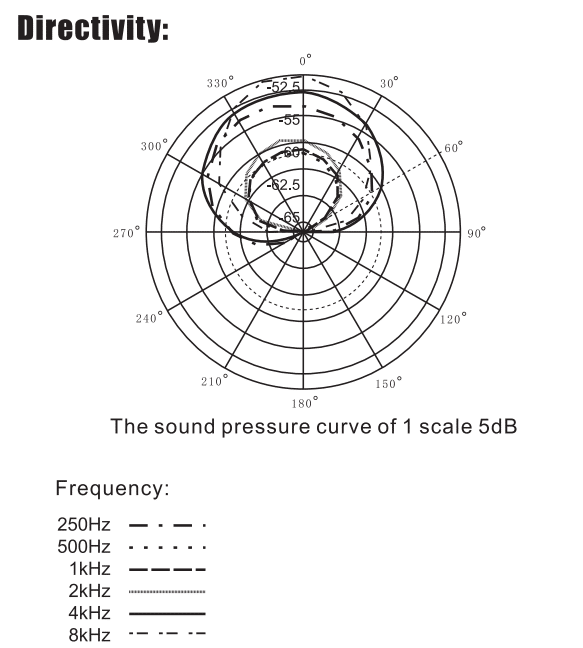

• Cardioid Directivity – Cardioid polar pattern reduces pickup of sounds from the sides and rear.
• Metal Production – Rugged all-metal construction for reliable performance.
• Ergonomic Design – After many wheel test trials, the most suitable manual design for production is produced, reducing hand fatigue when hand-held for a long time.

SM-300's Parameters

• Element: Dynamic
• Polar Pattern: Cardioid
• Frequency Response: 50Hz - 14000Hz
• Output Impedance: 600 Ω ± -30% (at 1KHz)
• Sensitivity: -58dB ± 3dB (1V/Pa)
• Switch: Magnetic Lock switch
• Output connector: Integral 3-pin XLRM-type
• Dimensions: Diameter 51 × 190mm
• Weight: 343g
