Description

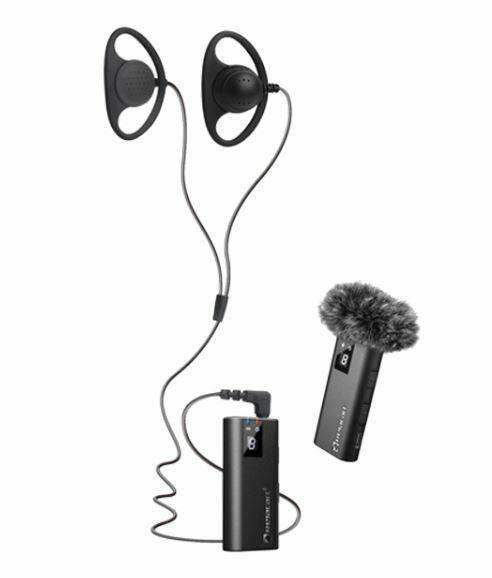

Relacart TGS-6T - wireless tour guide transmitter with UHF and DSP audio processing
Relacart TGS-6T is a professional wireless tour guide transmitter and part of the TGS-6 system, designed for AV applications in museums, factories, historic sites, tourist attractions, and training environments. Operating in the UHF band, it ensures stable audio transmission and resistance to Wi-Fi interference.
The TGS-6T features a compact, lightweight design (31.5g), making it comfortable for daily use. The innovative magnetic rubber clip allows quick attachment to a collar or metal surfaces, enabling hands-free operation. The built-in DSP processor with 48kHz sampling rate effectively reduces noise, while the included windproof fur windshield ensures clear voice pickup even in noisy environments.
The transmitter supports one-key channel switching and features a clear LED display. It is powered by a built-in lithium battery or via USB-C.
Functionality
- Stable UHF transmission resistant to Wi-Fi interference
- DSP with 48kHz sampling - noise reduction and clear audio
- Magnetic rubber clip - easy attachment
- Compact and lightweight - only 31.5g
- One-key channel switching and LED display
- Windshield - clear sound outdoors
- Power via battery or USB-C
Features
- Carrier bandwidth: 521.25 - 936.85 MHz
- Oscillation mode: PLL frequency synthesis
- Transmit power: 13.5 dBm
- Carrier deviation: 0.005%
- Harmonic radiation: -32 dBm
- Modulation method: FM
- Deviation range: ±65 kHz
- Max input level: 250 mV
- Input gain adjustment: 3 levels
- Input impedance: 2.2 kΩ
- Frequency setting: manual button control
- Power supply: lithium battery or USB-C 5V
- Working current: 100 mA
- Battery life: ≥ 4 hours
- Dimensions: 67 x 32 x 13.5 mm
- Weight: 31.5 g
Relacart TGS-6T is a reliable transmitter for professional tour guide systems, offering high-quality audio and user-friendly operation in any environment.
