500217

MuxLab 500217 - Audio Zone Amplifier 100W

The MuxLab 500217 is a compact Class D audio zone amplifier designed for professional AV installations requiring flexible audio distribution. It delivers 2x50W into 8Ω or 1x100W in Bridge mode into 4Ω, making it suitable for both local and distributed systems.

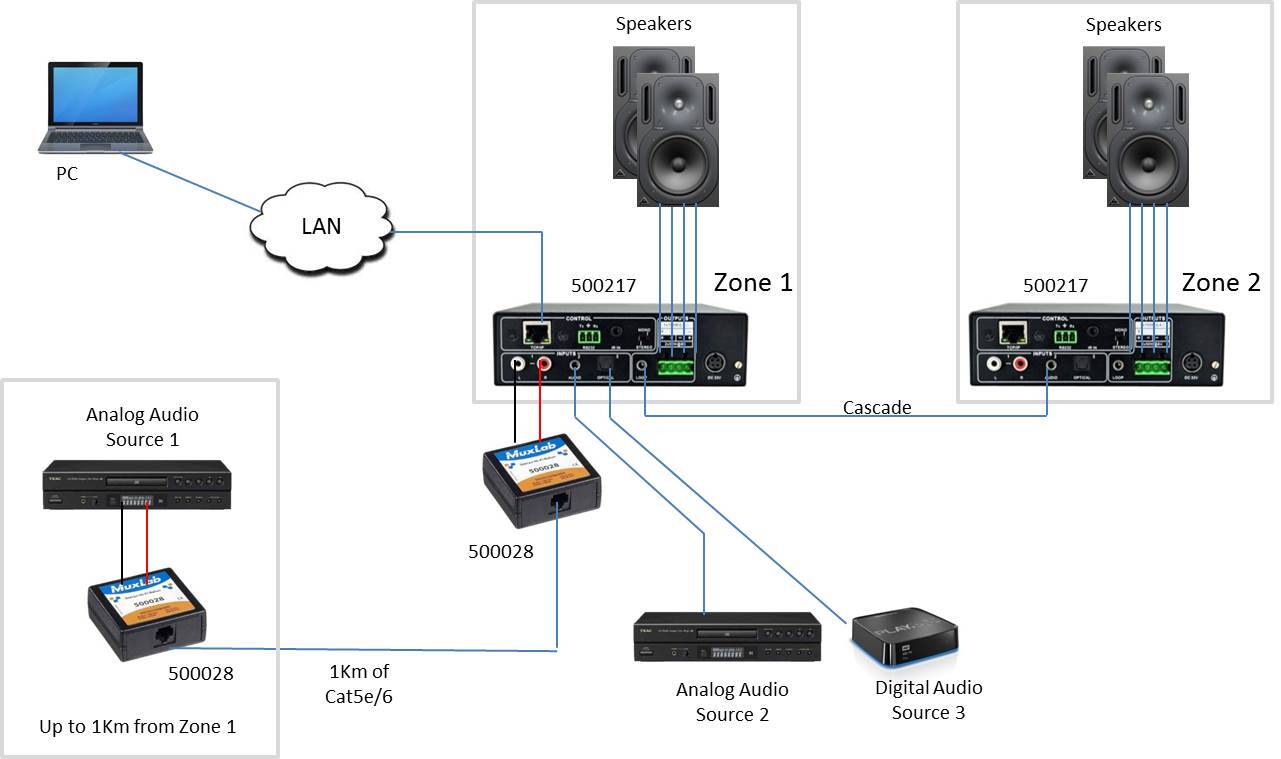

When paired with the MuxLab 70V transformer (500755-70V), the amplifier supports long-distance 70V speaker systems and daisy-chain configurations. It features two analog audio inputs (RCA and 3.5mm) and one digital optical input (TOSlink). Control is available locally via pushbuttons and a knob, or remotely via RS232, IR, and an IP webserver interface.

Functionality

• Class D amplifier with 2x50W (8Ω) or 1x100W (4Ω, Bridge)
• Supports analog and digital inputs (RCA, 3.5mm, TOSlink)
• Bridge mode for higher power single-speaker applications
• Compatible with 70V systems using transformer 500755-70V
• Local and remote control via RS232, IR, and IP web interface
• Volume, bass, and treble control with mute function

Features

• Device type: Class D audio zone amplifier
• Audio inputs: 2x analog (RCA, 3.5mm), 1x digital optical (TOSlink)
• Speaker outputs: 2x 50W @ 8Ω or 1x 100W @ 4Ω (Bridge)
• Compatibility: MuxLab 500755-70V, Hi-Fi Audio Baluns, Audio Matrix Switch 500210
• Control: local (buttons, knob), RS232, IR, IP (webserver)
• Functions: volume, bass, treble adjustment, mute
• Cascadable for amplifier chaining

MuxLab 500217 is a versatile and powerful amplifier ideal for modern AV installations, offering high-quality sound, flexible configuration, and multiple control options.
